Räder mit Luftreifen für Nabenmontage

Mehr Informationen

Zeichnungen hochladen Preisanfrage Kontaktieren Sie uns

Pros and cons

  • Da Vlukon Metallfelgen mit Bolzenlöchern für die Nabenmontage aus hochfestem europäischen D13-Stahl hergestellt werden, sind sie sehr widerstandsfähig gegen hohe Belastungen und Stöße.
  • Anpassung des Rades an Ihre Wünsche ist unsere Spezialität.
  • Farbe Die Felgen sind bei Vlukon BV pulverbeschichtet. In der Regel sind alle Farben auf Anfrage erhältlich. Kontaktieren Sie Vlukon BV für Informationen und all Ihre Sonderwünsche.
  • Ventilkappe, alle unsere pneumatischen Felgen sind serienmäßig mit einer Ventilkappe aus Stahl ausgestattet, um das Ventil vor Beschädigungen zu schützen.
  • Da Vlukon über die größte Auswahl an Formen verfügt, können wir für viele verschiedene Maschinentypen schnell liefern.
  • Wir verkaufen nur an Geschäftskunden und der Mindestbestellwert pro Artikel beträgt 500,- Euro.
  • Im Moment sind die dringenden Lieferungen von Sonderanfertigungen innerhalb von 2 Wochen nur für stra

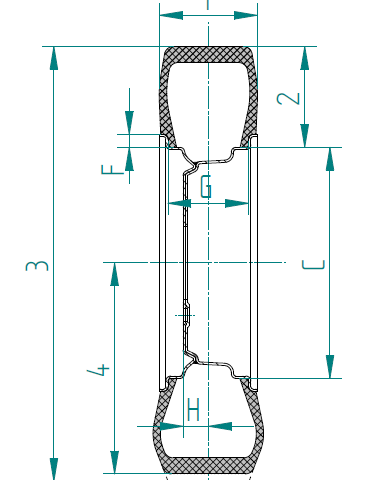

Technical drawings

Productaanbod

Bandenmaat
Bandenmaat 		Breite & Durchmesser in Zoll.
Felgengröße 		Load / kg
Load / kg 		load indication at speed
load indication at speed 		= Abstand von der Felgenmitte bis zur Innenseite der inneren Felgenplatte. Auch bekannt als E.T. oder Offset. In der Zeichnung mit "D" gekennzeichnet
(D) Einpresstiefe mm 		In der Zeichnung mit "C" gekennzeichnet. Siehe auch "Ausführung der Bolzenlöcher".
(C) Bolzenlochdurchmesser mm 		PR
PR 		Patroon
Patroon 		Band
Band 		= der Druck in den Reifen, Maßeinheit: Bar
Druk bar 		Center hole diameter marked with "A", Pitch Circle diameter marked with "B" and Number of bolt holes marked with "C".
Ø centre hole (A), Ø Pitch circle (B) and number of studholes (C) 		Reference No. Information
3.00-4 2.10-4 110 10 km/h 0 8.5 4 KT-605 256x83 4.0 52/72/5 WG70LLT3001 Read more
13x5.00-6 4.50D-6 200 16 km/h 0 14.0 4 HF-224 326x123 1.8 60/100/4 WG08LLC4800 Read more
15x6.00-6 3.50Ax6 280 16 km/h 11 8.5 4 HF-224 362x156 2.5 40/64/4 WG17LTC5001 Read more
16.5x6.50-8 5.50Ax8 280 130 km/h 0 13.5 4 HF-213 412x160 3.2 60/100/4 WG26LTC6103 Read more
16.5x6.50-8 5.50Ax8 360 130 km/h 0 13.5 6 HF-213 412x160 4.9 60/100/4 WG26LTC6101 Read more
16.5x6.50-8 5.50Ax8 375 100 km/h 0 13.5 6 V-71 411x165 4.0 60/100/4 WG26LTA6101 Read more
16x6.50-8 5.50Ax8 280 16 km/h 0 13.5 4 HF-217 409x164 2.0 60/100/4 WG26LLC6102 Read more
16x6.50-8 5.50Ax8 280 16 km/h 0 13.5 4 HF-224 405x163 1.8 60/100/4 WG26LTC6104 Read more
16x6.50-8 5.50Ax8 345 16 km/h 0 13.5 6 HF-224 405x163 1.8 60/100/4 WG26LTC6107 Read more
16x6.50-8 5.50Ax8 280 16 km/h 0 13.5 4 KT-801 416x163 1.9 60/100/4 WG26LLT6100 Read more
18.5x8.5-8 7.00Ax8 425 130 km/h 0 13.5 6 HF-232 462x213 3.5 60/100/4 WG28LTC6300 Read more
18x6.50-8 5.50Ax8 350 16 km/h 0 13.5 4 HF-224 448x165 1.9 60/100/4 WG26LTC6200 Read more
18x7-8 4.33R-8 1650 25 km/h 0 13.5 16 PL-801 470x173 10.0 60/98/4 WG88LLC6702 Read more
18x7-8 4.33R-8 1650 25 km/h 0 13.5 16 PL-801 470x173 10.0 60/100/4 WG88LLO6700 Read more
18x7-8 4.33R-8 1650 25 km/h 0 13.5 16 PL-801 470x173 10.0 58.5/98/5 WG88LLO6701 Read more
18x8.50-8 7.00Ax8 370 16 km/h 0 13.5 4 KT-303 459x221 1.5 60/100/4 WG28LTT6304 Read more
18x9.50-8 7.00Ax8 470 16 km/h 0 13.5 4 KT-303 472x244 1.7 60/100/4 WG28LTT9401 Read more
18x9.50-8 7.00Ax8 580 16 km/h 0 13.5 6 KT-303 472x244 2.8 60/100/4 WG28LTT9407 Read more
18x9.50-8 7.00Ax8 405 16 km/h 0 13.5 4 HF-255 470x223 1.7 60/100/4 WG28LLC9404 Read more
18x9.50-8 7.00Ax8 405 16 km/h -22.5 13.5 4 HF-255 470x223 1.7 60/100/4 WG28LLC9405 Read more
190-8 4.95x8 575 25 km/h -10 13.5 8 HF-400 424x182 6.0 60/100/4 WG32LLC5401 Read more
190-8 4.95x8 575 25 km/h -10 12.5 8 HF-400 424x182 6.0 85/115/4 WG32LLC5400 Read more
190-8 4.95x8 575 25 km/h -10 12.5 8 HF-400 424x182 6.0 85/115/4 WG32LLC5403 Read more
190-8 5.50Ax8 575 25 km/h 0 13.5 8 HF-400 424x182 6.0 60/100/4 WG26LLC40001 Read more
195/50-10 6.00Ix10 730 130 km/h -4 16.0 10 V-48 461x188 6.0 67/112/5 WG45LTA13300 Read more
195/50-B10 6.00Ix10 730 130 km/h -4 15.0 98M C-8001 450x192 6.0 60/100/4 WG45LTX13301 Read more
195/50-B10 6.00Ix10 730 130 km/h -4 16.0 98M C-8001 450x192 6.0 67/112/5 WG45LTX13300 Read more
195/50-B10 6.00Ix10 730 130 km/h -4 18.5 98M C-8001 450x192 6.0 94/140/5 WG45LTX13302 Read more
20.5x8-10 6.00Ix10 690 100 km/h -4 15.0 10 HF-232 515x202 6.3 60/100/4 WG45LTC11208 Read more
20.5x8-10 6.00Ix10 690 100 km/h -4 16.0 10 HF-232 515x202 6.3 67/112/5 WG45LTC11204 Read more
20.5x8-10 6.00Ix10 690 100 km/h -4 18.5 10 HF-232 515x202 6.3 94/140/5 WG45LTC11210 Read more
20x10-8 7.00Ax8 495 16 km/h 0 13.5 4 HF-224 499x243 1.4 60/100/4 WG28LLC10400 Read more
20x8.00-10 6.00Ix10 400 16 km/h 0 13.5 4 K-378 508x213 1.6 60/100/4 WG45LLK9700 Read more
20x8.00-10 6.00Ix10 510 16 km/h 0 13.5 6 LG-306 500x205 2.5 60/100/4 WG45LTLG9700 Read more
23x10.50-12 8.50Ix12 800 30 km/h -10 14.0 6 HF-293 580x258 2.2 80/114.3/5 WG56LTC7713 Read more
23x10.50-12 8.50Ix12 800 30 km/h 0 13.5 6 Multi Trac 572x259 2.2 63.5/100/4 WG56LTR7717 Read more
23x10.50-12 8.50Ix12 970 16 km/h 0 13.5 8 K500 580x265 3.0 63.5/100/4 WG56LTK7710 Read more
23x10.50-12 8.50Ix12 910 30 km/h -10 14.0 8 HF-255 570x263 1.4 80/114.3/5 WG56LTC7715 Read more
23x10.5-12 7.00JAx12 605 30 km/h 0 13.5 4 HF-255 585x255 1.4 63.5/100/4 WG66LTC7701 Read more
23x10.5-12 8.50Ix12 605 30 km/h -35 13.5 4 HF-255 585x255 1.4 63/95/4 WG56LTC7704 Read more
23x10.5-12 8.50Ix12 605 30 km/h 0 13.5 4 HF-255 585x255 1.4 63.5/100/4 WG56LTC7700 Read more
23x10.5-12 8.50Ix12 605 30 km/h -95 13.5 4 HF-255 585x255 1.4 63.5/100/4 WG56LTC7706 Read more
23x10.5-12 8.50Ix12 605 30 km/h -95 13.5 4 HF-255 585x255 1.4 63.5/100/8 WG56LTC7714 Read more
23x10.5-12 8.50Ix12 910 30 km/h -35 13.5 8 HF-255 570x263 1.4 63/95/4 WG56LTC7711 Read more
23x10.5-12 8.50Ix12 910 30 km/h -95 13.5 8 HF-255 570x263 1.4 63.5/100/4 WG56LTC7708 Read more
23x10.5-12 8.50Ix12 910 30 km/h -75 13.5 8 HF-255 570x263 1.4 63.5/100/4 WG56LTC7712 Read more
23x10.5-12 8.50Ix12 910 30 km/h -95 13.5 8 HF-255 570x263 1.4 63.5/100/8 WG56LTC7709 Read more
23x10.5-12 7.00JAx12 910 30 km/h 0 18.5 8 HF-255 570x263 1.4 94/140/5 WG66LTC7703 Read more
23x8.50-12 7.00JAx12 505 30 km/h 0 13.5 4 HF-255 574x208 1.4 63.5/100/4 WG66LLC7600 Read more
23x8.50-12 7.00JAx12 505 30 km/h 0 13.5 4 HF-255 574x208 1.4 63.5/100/4 WG66LTC7601 Read more
23x8.50-12 7.00Ix12 820 30 km/h 10 14.0 6 HF-702 570x210 3.5 80/114.3/5 WG57LTC7605 Read more
26.5x14-12 10.50Ix12 986 16 km/h 0 13 4 Ultra Trac 673x366 1.3 94/140/5 WG55LTR16500 Read more
26x12-12 10.50Ix12 805 30 km/h 0 18.5 4 HF-255 656x297 1.4 94/140/5 WG55LLC8103 Read more
26x12-12 10.50Ix12 730 30 km/h 0 13 4 HF-213 660x327 1.4 94/140/5 WG55LTC8109 Read more
26x12-12 10.50Ix12 1372 30 km/h 0 18.5 8 HF-255 659x301 3.5 94/140/5 WG55LLC8110 Read more
26x12-12 10.50Ix12 1372 30 km/h 0 21.5 8 HF-255 659x301 3.5 161/205/6 WG55LTC8106 Read more
26x12-12 10.50Ix12 1390 30 km/h -25 18.5 8 HF-213 660x327 3.5 94/140/5 WG55LLC8104 Read more
4.00-10 2.50x10 375 130 km/h 9 13.5 6 HF-229 464x105 4.2 60/100/4 WG40LLC7903 Read more
4.00-8 3.00D-8 710 10 km/h 0 13.5 8 V-40 414x107 6.5 60/100/4 WG80LLA5801 Read more
4.00-8 2.50Ax8 270 130 km/h 0 13.5 4 V-47 415x108 3.5 60/100/4 WG22LTA5800 Read more
4.00-8 2.50Ax8 270 130 km/h 0 12.5 4 V-47 415x108 3.5 67/101.6/4 WG22LTA5806 Read more
4.00-8 2.50Ax8 270 130 km/h 0 12.5 4 V-47 415x108 3.5 85/115/4 WG22LTA5803 Read more
4.00-8 2.50Ax8 340 130 km/h 0 13.5 6 HF-269 415x114 4.2 60/100/4 WG22LLC5808 Read more
4.00-8 2.50Ax8 345 100 km/h 0 13.5 6 V-54 415x108 4.2 60/100/4 WG22LTA5801 Read more
4.10/3.50-6 3.50Ax6 200 10 km/h 0 15.0 4 HF-205 323x99 3.5 60/85/3 WG17LLC4700 Read more
4.10/3.50-6 2.50Ax6 200 10 km/h 0 8.5 4 C-178 320x104 3.5 60/90/4 WG15LLX4704 Read more
4.50-10 3.50Bx10 400 130 km/h 0 13.5 6 HF-229 490x125 4.0 60/100/4 WG42LLC9103 Read more
4.80/4.00-8 2.50Ax8 305 16 km/h 0 13.5 4 S-369 401x115 3.5 60/100/4 WG22LLS5955 Read more
4.80/4.00-8 2.50Ax8 555 16 km/h 0 13.5 6 HF-202 418x120 7.2 60/100/4 WG22LLC5900 Read more
4.80/4.00-8 3.00D-8 555 16 km/h 0 13.5 6 HF-202 418x120 7.2 60/100/4 WG80LLC5901 Read more
4.80/4.00-8 2.50Ax8 260 15 km/h 0 13.5 6 KT-602 407x119 4.2 60/100/4 WG22LLT5918 Read more
4.80/4.00-8 3.00D-8 260 15 km/h 0 13.5 6 KT-602 407x119 4.2 60/100/4 WG80LLT5901 Read more
4.80/4.00-8 2.50Ax8 265 130 km/h 0 13.5 4 HF-215 415x120 4.2 60/100/4 WG22LLC5956 Read more
4.80/4.00-8 2.50Ax8 265 130 km/h 0 13.5 4 HF-215 415x120 4.2 60/100/4 WG22LLC5901 Read more
4.80/4.00-8 2.50Ax8 265 130 km/h 0 12.5 4 HF-215 415x120 4.2 67/101.6/4 WG22LLC5902 Read more
4.80/4.00-8 2.50Ax8 265 130 km/h 0 12.5 4 HF-215 415x120 4.2 85/115/4 WG22LLC5903 Read more
4.80/4.00-8 2.50Ax8 335 130 km/h 0 13.5 6 HF-215 415x120 4.2 60/100/4 WG22LLC5905 Read more
4.80/4.00-8 2.50Ax8 335 130 km/h 0 12.5 6 HF-215 415x120 4.2 67/101.6/4 WG22LLC5909 Read more
4.80/4.00-8 2.50Ax8 335 130 km/h 0 12.5 6 HF-215 415x120 4.2 85/115/4 WG22LLC5908 Read more
5.00-10 3.50x10 280 16 km/h 23.5 13.5 4 HF-253 525x138 2.8 60/100/4 WG42LLC7015 Read more
5.00-10 3.50Bx10 355 130 km/h 0 13.5 4 V-47 516x134 3.5 60/100/4 WG42LTA7002 Read more
5.00-10 3.50Bx10 355 130 km/h 0 12.5 4 V-47 516x134 3.5 85/115/4 WG42LTA7001 Read more
5.00-10 3.50Bx10 360 130 km/h 0 13.5 4 HF-249 517x145 2.8 60/100/4 WG42LTC7001 Read more
5.00-10 3.50Bx10 360 130 km/h 0 12.5 4 HF-249 517x145 2.8 85/115/4 WG42LTC7002 Read more
5.00-10 3.50Bx10 385 130 km/h 0 13.5 6 V-47 516x134 4.0 60/100/4 WG42LTA7007 Read more
5.00-10 3.50Bx10 385 130 km/h 0 12.5 6 V-47 516x134 4.0 85/115/4 WG42LTA7008 Read more
5.00-10 3.50x10 385 130 km/h 23.5 13.5 6 V-47 516x134 4.0 60/100/4 WG42LTA7014 Read more
5.00-10 3.50Bx10 430 130 km/h 0 13.5 6 HF-249 517x145 3.5 60/100/4 WG42LTC7009 Read more
5.00-10 3.50Bx10 430 130 km/h 0 12.5 6 HF-249 517x145 3.5 85/115/4 WG42LTC7010 Read more
5.00-8 3.00Dx8 745 10 km/h 0 13.5 6 HF-223 460x141 6.5 60/100/4 WG24LLC6002 Read more
5.00-8 3.00D-8 745 10 km/h 0 15.0 6 HF-223 460x141 6.5 67/112/5 WG80LLC6007 Read more
5.00-8 3.00D-8 1300 10 km/h 0 15.0 8 HF-223 455x132 7.0 67/112/5 WG80LLC6008 Read more
5.00-8 3.50D-8 1300 10 km/h 0 15.0 8 HF-223 455x132 7.0 67/112/5 WG82LLC6001 Read more
5.00-8 3.00D-8 1300 10 km/h 0 18.0 8 HF-223 455x132 7.0 94/140/5 WG81LLC6001 Read more
5.00-8 3.00D-8 515 30 km/h 0 13.5 10 V-50 450x130 6.0 60/100/4 WG80LLA6010 Read more
5.00-8 3.00Dx8 1100 10 km/h 0 13.5 6 S-369 462x142 6.0 60/100/4 WG24LLS6002 Read more
5.00-8 3.00D-8 780 32 km/h 0 15.0 8 HF-281 462x135 7.0 60/100/4 WG81LLC6005 Read more
5.00-8 3.00Dx8 400 130 km/h 0 13.5 6 HF-214 467x140 5.0 60/100/4 WG24LLC6003 Read more
5.00-8 3.00D-8 573 130 km/h 0 15.0 10 HF-269 455x136 8.4 60/100/4 WG81LLC6002 Read more
5.00-8 3.00D-8 573 130 km/h 0 18.0 10 HF-269 455x136 8.4 94/140/5 WG81LLC6003 Read more
5.00-8 3.00D-8 780 32 km/h 0 13.5 8 HF-281 462x135 7.0 60/100/4 WG80LLC6011 Read more
5.20-10 3.50Bx10 280 130 km/h 0 13.5 4 HF-268 508x130 2.1 60/100/4 WG42LTC7101 Read more
6.00-12 4.00Bx12 325 30 km/h 0 13.5 4 KT-803 620x155 1.8 60/100/4 WG54LLT8200 Read more
6.00-9 4.00Ex9 900 30 km/h 0 13.5 6 HF-223 540x169 5.0 60/100/4 WG30LLC6502 Read more
6.00-9 4.00Ex9 900 30 km/h 0 12.5 6 HF-223 540x169 5.0 85/115/4 WG30LLC6504 Read more
6.00-9 4.00Ex9 900 30 km/h 0 14.0 6 HF-223 540x169 5.0 94/140/5 WG30LLC6501 Read more
6.00-9 4.00E-9 670 30 km/h 0 18.5 10 V-50 543x169 5.0 85/130/4 WG90LLA6500 Read more
6.00-9 4.00Ex9 550 130 km/h 0 13.5 6 HF-269 527x165 4.6 60/100/4 WG30LLC6507 Read more
6.00-9 4.00E-9 710 130 km/h 0 16.0 10 HF-269 527x165 7.0 67/112/5 WG90LLC6501 Read more
6.00-9 4.00E-9 710 130 km/h 0 18.5 10 HF-269 527x165 7.0 94/140/5 WG90LLC6510 Read more

Ist das von Ihnen gesuchte Produkt nicht aufgeführt? Sie können eine Anpassung anfordern oder uns hier kontaktieren.
